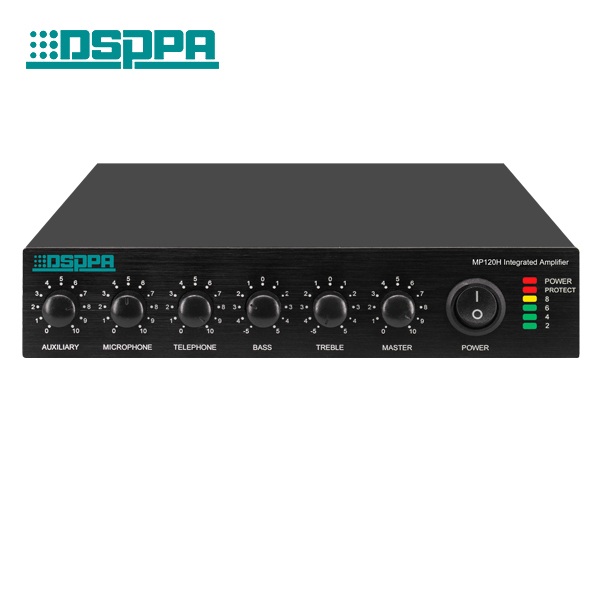

Rack mounted Mini digital mixer amplifier MP35H MP60H MP120H
Product Description
Product Description
Features1 channel AUX input with individual control; 1 channel MIC input; 1 channel TEL input 1 channel MOH output with impedance and level adjustable; 12V DC output, can connect with third party equipment With muting function of MIC and TEL (switchable), and dry contact of the third party equipment of muting input 25V/ 70V constant pressure output and 8Ω constant resistance output; Power supply: AC120V/ 60Hz With master Volume control; microphone, telephone volume control; treble, bass tone control The amplifier consume half of the rack and can mount side by side with a second amplifier
Product Paramenters

Related Productsview more >>Recommended by sellerClassical Mixer PA Amplifier MP200PIII MP300PIII MP600PIII MP1000PIII$310.00 - $350.00 / Piece1 PieceDA3350 Series 1 Channel Class-D Power Amplifier Digital Amplifier 19" Rack mounted amplifier 450W 550W 750W 1000W 2000W$680.00 - $720.00 / Piece1 Piece60W 120W 6 Zones Mixer Amplifier with USB/SD/FM$200.00 - $220.00 / Piece1 PieceCompany Introduction
Why Choose Us
Exhibition
Packing and shipping
FAQQ: Are you manufacturer or trade company? Where is your factory?
A: We are manufacturer since 1988. Our Factory address is No.1 Xiahe Road, Jianggao Town, Baiyun District, Guangzhou, Guangdong Province, China 510450
Q: I want make my own brand, is this available?
A: Certainly. We provide OEM/ODM service for you and make your own brand on the products.
Q: What’s your Minimum Order Quantity(MOQ)?
A: We have big warehouse, if the item is in stock, 1pcs is available, if we don’t have enough stock, you need to inquiry the sales
manager.
Q: What’s the payment term?
A: Usually we provide 30% as deposit and Balance before delivery, T/T is the first optional.
Q: Do you have any other payment terms?
A: We can also accept Paypal, WestUnion, Alibaba credit assurance order and so on.
Q: What kind of Certification do you have?
A: We have CE, RoHs, UL, CCC, ISO90001, ISO20000, RF, AOE, SGS and so on.
Q: How about the lead time?
A: Usually, 5 days for instock sample and 30 days for mass production, it depends.
Q: Do you have any successful case?
A: 2008 Beijing Olympic Games
Singapore Central Hospital Project
2014 Winter Olympics in Sochi, Russia
2016 G20 Hangzhou Summit
2018 Jakarta Asian Games
Contact us if you need more details on Class-d Amplifier. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Digital Aamplifier、Digital Power Amplifier. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Paramenters
Model | MP35H | MP60H | MP120H | ||
Power Output | 35W | 60W | 120W | ||
Consumption | Less than 0.5% | ||||
Input Auxiliary | 47kΩ, 200mV, Unbalanced | ||||
Input MIC | 250kΩ, 1mV, Unbalanced | ||||
Input Telephone | 10K/ 600Ω, 100mV, switchable, balanced | ||||
MOH Output | 10K/ 600Ω, 100mV, switchable, balanced | ||||
Output Ω | 8Ω, 25V, 70V | ||||
Controls Front | AUX volume, MIC volume, TEL volume, BASS, TREBLE | ||||
Controls Rear | AUX gain, Chime level, MOH level, Vox sens | ||||
Phantom Power | Mic input(customized) | ||||
MOH source | AUX input | ||||
Tone Control | ±10dB at 100Hz and 10K Hz | ||||
VOX | Voice activated muting | ||||
Direct Muting | External contacts | ||||
Rack Mounting | Optional rack kit for single or side by side use | ||||
Power Supply | AC~120V, 60Hz | ||||
Power Consumption | 110VA | 230VA | 600VA | ||
Terminations | Phoenix connectors- RCA jacks | ||||
Indicators | LED- Power- Protect- Signal level | ||||
Chassis Finish | High durability black finish | ||||
Dimension | 11.5"×8.5"×1.75" | ||||
Net Weight | 2LBS | 3LBS | 4LBS |
