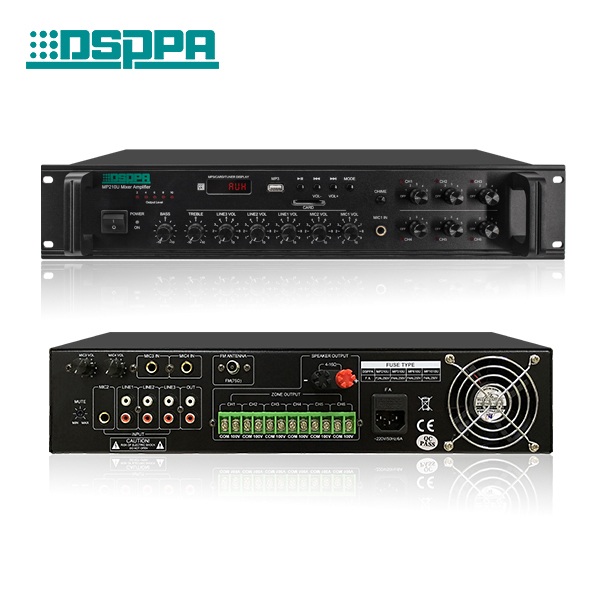

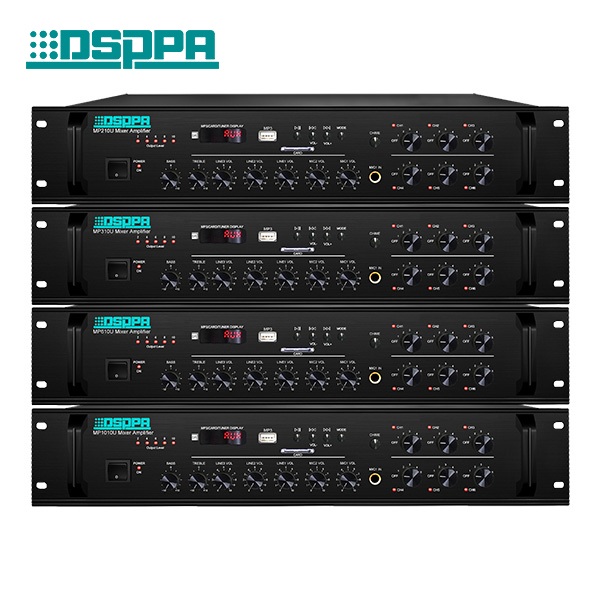

6 Zones 100V PA mixer Amplifier with USB/FM MP210U MP310U MP610U MP1010U
Product Description
Product Description
Features6 zones output, each zone with individual Volume control Support USB/SD/FM radio, with built-in chime 4 MIC inputs, Mic 1 with priority and muting function 3 AUX line input & 1 AUX line output for power extension Each AUX & Mic input with individual volume control 100V & 4-16Ω flexible speaker output (70V customizable) Power supply: AC220V-240V/50-60Hz
Product Paramenters
Related Productsview more >>Recommended by seller6 Zones Mixing Amplifier with USB PA Amplifier audio amplifier with USB MP210UB MP310UB MP610UB MP1010UB$610.00 - $650.00 / Piece1 Piece60W 120W One zone Mixer Amplifier with USB$160.00 - $180.00 / Piece1 PieceCompany Introduction
Why Choose Us
Exhibition
Packing and shipping
FAQQ: Are you manufacturer or trade company? Where is your factory?
A: We are manufacturer since 1988. Our Factory address is No.1 Xiahe Road, Jianggao Town, Baiyun District, Guangzhou, Guangdong Province, China 510450
Q: I want make my own brand, is this available?
A: Certainly. We provide OEM/ODM service for you and make your own brand on the products.
Q: What’s your Minimum Order Quantity(MOQ)?
A: We have big warehouse, if the item is in stock, 1pcs is available, if we don’t have enough stock, you need to inquiry the sales
manager.
Q: What’s the payment term?
A: Usually we provide 30% as deposit and Balance before delivery, T/T is the first optional.
Q: Do you have any other payment terms?
A: We can also accept Paypal, WestUnion, Alibaba credit assurance order and so on.
Q: What kind of Certification do you have?
A: We have CE, RoHs, UL, CCC, ISO90001, ISO20000, RF, AOE, SGS and so on.
Q: How about the lead time?
A: Usually, 5 days for instock sample and 30 days for mass production, it depends.
Q: Do you have any successful case?
A: 2008 Beijing Olympic Games
Singapore Central Hospital Project
2014 Winter Olympics in Sochi, Russia
2016 G20 Hangzhou Summit
2018 Jakarta Asian Games
Contact us if you need more details on 6 Zone Mixer Amplifier. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Mixer Amplifier、Amplifier With Usb. If these products fail to match your need, please contact us and we would like to provide relevant information.
Features6 zones output, each zone with individual Volume control Support USB/SD/FM radio, with built-in chime 4 MIC inputs, Mic 1 with priority and muting function 3 AUX line input & 1 AUX line output for power extension Each AUX & Mic input with individual volume control 100V & 4-16Ω flexible speaker output (70V customizable) Power supply: AC220V-240V/50-60HzProduct Paramenters
Model | MP210U | MP310U | MP610U | MP1010U | |||
Rated Output | 60W | 120W | 250W | 350W | |||
Output regulation | ≤3dB (from off-load to full load) | ||||||
Input sensitivity | Microphone : ≤3mV (unbalanced) | ||||||
Line: ≤300mV (unbalanced) | |||||||
Frequency response | 80Hz-16KHz (±3dB) | ||||||
Distortion | ≤1% （1KHz，normal operating status） | ||||||
S/N Ratio | Line: ≥74dB | ||||||
Tone | Bass: ±10dB（at 100Hz） | ||||||
Treble: ±10dB（at 10kHz） | |||||||
Protection | DC voltage; overload; short-circuit. | ||||||
Mute | Input signals from MIC 1 override other input signals | ||||||
Power supply | AC 220-240V/50-60Hz | ||||||
Power Consumption | 120W | 250W | 500W | 650W | |||
Outer Packing Size(mm) | (L×W×H)555×455×185 | ||||||
Unit Size (mm) | (L×W×H)484×355×88 | ||||||
Gross Weight | 11.7kg | 13.5kg | 16kg | 17kg | |||
Net Weight | 9.7kg | 11.5kg | 14kg | 15kg | |||
Working power supply | AC220/ 50Hz | ||||||
Phantom voltage | + 48V | ||||||
Rated power consumption | 8Ω 60W | 8Ω 120W | 8Ω 250W | ||||
Protective function | Overload, over temperature, short circuit | ||||||
Dimension (L × W × H) | 483x 310x 88 mm | ||||||
Package dimension (L × W × H) | 520mm×395mm×170mm | ||||||
Gross weight | 9.5kg | 10.15kg | 7.6kg | ||||
Net weight | 7.5kg | 8.15kg | 5.6kg | ||||
