Home > Products > Commercial Amplifier > Classical Mixer Amplifier > 6 Zones Integrated Mixer Amplifier with Remote Paging Mic with DC24V MP812 MP825 MP835

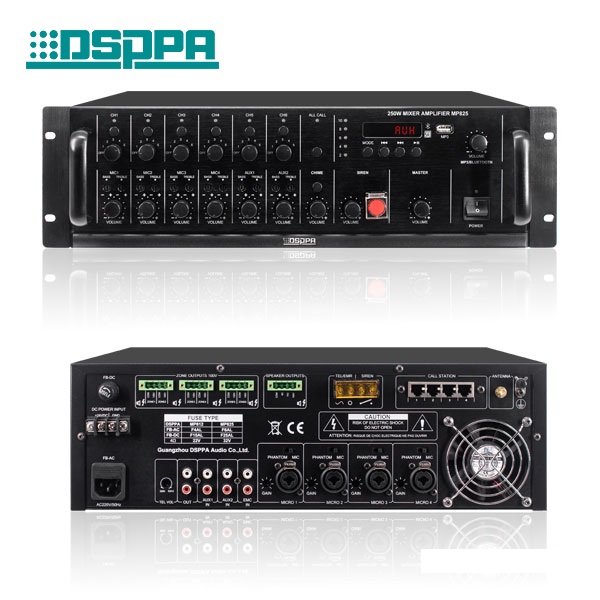

6 Zones Integrated Mixer Amplifier with Remote Paging Mic with DC24V MP812 MP825 MP835

Product Description

Product DescriptionFeatures6 zones output, each zone with individual Volume control Support AUX/USB/Bluetooth for audio input Support 4 remote paging stations CM12, support cascaded linkage 4 combo MIC inputs, support phantom power 48V supply Mic1-4 with independent volume control switch and gain adjustment 2 AUX line inputs, 1 EMC input, 1 chime trigger input Each AUX and Mic input with volume and Bass & Treble control Support TEL input, built-in one touch emergency alarm Separate Bass & Treble adjustment for sound effect Priority level: TEL,Remote paging>Mic1>Siren,EMC,Chime>Others 70V/100V & 4-16Ω optional speaker outputs
Product Paramenters
Rated power
Constant voltage output
70V, 100V
Constant impedance output
4-16Ω (balanced, not grounded)
Line input sensitivity
300mV(±50mV), 1kHz/unbalanced;
Microphone input sensitivity
3.0mV(±0.5mV), 1kHz/unbalanced;
5.0mV(±0.5mV), 1kHz/balanced
EMC input sensitivity
300mV(±50mV), 1kHz/unbalanced;
Telephone sound source input sensitivity
775mV(±50mV), 1kHz/unbalanced;
Frequency response
MIC: 100Hz-12kHz (±3dB);
TEL: 100Hz-12kHz (±3dB);
LINE: 80Hz-16kHz (±3dB);
MIC: 100Hz-12kHz (±3dB);
TEL: 100Hz-12kHz (±3dB);
LINE: 80Hz-16kHz (±3dB);
Tune control
±10dB (Bass: 100Hz);
±10dB (Treble: 10KHz);
Signal to noise ratio
MIC: ≥55dB;TEL: ≥65dB;LINE: ≥75dB;
Auxiliary line output
0dBV, unbalanced
Remote microphone input
2000mV, balanced
Protection function
Overload protection, short-circuit protection, temperature protection
Total harmonic distortion
≤ 1% (1kHz, normal working condition)
Output adjustment rate
From full load to no load, ≤3dB
Power consumption
Dimension of machine (L×W×H mm)
Dimension of packing (L×W×H mm)
Net weight
Gross weight
