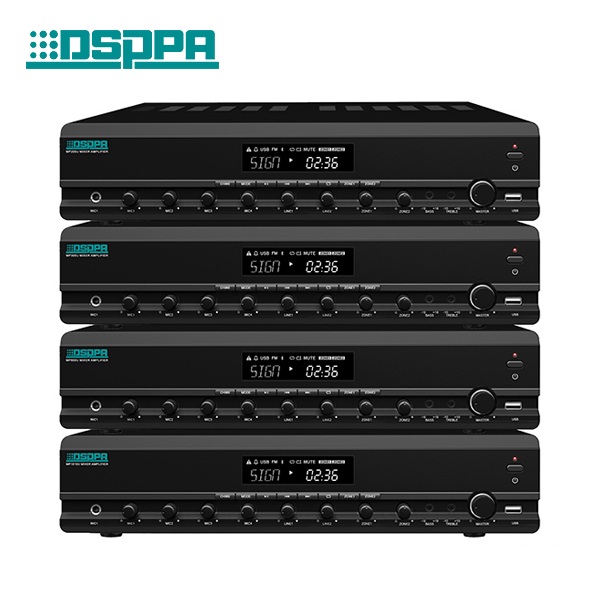

2 Zones Integrated Mixer Amplifier with Remote Paging Mic MP200U MP300U MP600U MP1000U
Product Description
Product Description
FeaturesWith LCD screen to display working status 70V/100V & 4-16Ω speaker output Rated power 60W/120W/250W/350W Built in two zones of 100V output Built-in 4 MIC and 2 AUX and USB/FM/Bluetooth 4 audio source modes: AUX/Bluetooth/FM/USB Mic 2-4 with phantom power 48V and independent gain adjustment Individual Volume control for Mic1-4 and Aux input 1-2 Support 2 remote paging stations RM20 Chime/Siren/Mute inputs with gain adjustment Priority: EMC/MIC1/Remote Microphone/Short Circuit adjustable Protection: Overload, Clipping, Short circuit and temperature protection With memory function, the last shutdown content will be displayed when the power is turned on With 19" rack mount handles (optional) Power supply: AC220V-240V/50/60Hz or DC24V
Product Paramenters


Related Productsview more >>Recommended by seller6 Zones Integrated Mixer Amplifier with phantom power$480.00 - $520.00 / Piece1 Piece2 Channels Digital Class-D Amplifier with DC24V Power Amplifier 2x125W 2x250W 2x500W$560.00 - $620.00 / Piece1 PieceDA3350 Series 1 Channel Class-D Power amplifier Digital Amplifier 19" Rack mounted amplifier 450W 550W 750W 1000W 2000W$680.00 - $720.00 / Piece1 Piece250W 350W 450W 650W 6 zones Mixer amplifier with MP3/FM/USB/SD$440.00 - $480.00 / Piece1 PieceCompany Introduction
Why Choose Us
Exhibition
Packing and shipping
FAQQ: Are you manufacturer or trade company? Where is your factory?
A: We are manufacturer since 1988. Our Factory address is No.1 Xiahe Road, Jianggao Town, Baiyun District, Guangzhou, Guangdong Province, China 510450
Q: I want make my own brand, is this available?
A: Certainly. We provide OEM/ODM service for you and make your own brand on the products.
Q: What’s your Minimum Order Quantity(MOQ)?
A: We have big warehouse, if the item is in stock, 1pcs is available, if we don’t have enough stock, you need to inquiry the sales
manager.
Q: What’s the payment term?
A: Usually we provide 30% as deposit and Balance before delivery, T/T is the first optional.
Q: Do you have any other payment terms?
A: We can also accept Paypal, WestUnion, Alibaba credit assurance order and so on.
Q: What kind of Certification do you have?
A: We have CE, RoHs, UL, CCC, ISO90001, ISO20000, RF, AOE, SGS and so on.
Q: How about the lead time?
A: Usually, 5 days for instock sample and 30 days for mass production, it depends.
Q: Do you have any successful case?
A: 2008 Beijing Olympic Games
Singapore Central Hospital Project
2014 Winter Olympics in Sochi, Russia
2016 G20 Hangzhou Summit
2018 Jakarta Asian Games
Contact us if you need more details on Integrated Mixer Amplifier. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Bluetooth Amplifier、Mixer Amplifier With Paging. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Paramenters
Model | MP200U | MP300U | MP600U | MP1000U | |||
Rated output power | 60W | 120W | 250W | 350W | |||
Input sensitivity | MIC1 :5mv (unbalanced 6.35 interface input) | ||||||
MIC2-MIC4:±5mv (balanced XLR input) | |||||||
AUX IN:300mv±30mv(unbalanced RCA input) | |||||||
EMC IN:375mv±30mv(unbalanced terminal) | |||||||
Freq. Response | 60HZ-16KHZ ±3dB | ||||||
THD | ≤1% at 1KHZ | ||||||
Screen | Multi-functional segmented LCD screen | ||||||
SNR | ≥75dB | ||||||
Total volume | Adjust volume from 0 to 32 with number displayed on screen | ||||||
Audio adjustment range | Bass:100HZ ±10±2dB Treble:10KHZ ±10±2 dB with number displyed | ||||||
Priority | 3-level custom priority,EMC>MIC1>remoter paging | ||||||
485 interface | 485 communication protocol | ||||||
Phantom power | 48V±2V | ||||||
AUX IN | 2 channel AUX IN | ||||||
EMC IN | 1 channel EMC IN | ||||||
LINE OUT | 1 channel LINE OUT:1V at 1KHZ | ||||||
Chime | support | ||||||
Alarm | support | ||||||
MUTE | support | ||||||
Bluetooth | support | ||||||
FM | support | ||||||
MP3 | support | ||||||
Zone | 2 zones | ||||||
Remote control | support | ||||||
DC 24V input | support | ||||||
Working power | AC 220-240V/50HZ/60HZ | ||||||
Package size | (L X W X H)542mm*470mm*155mm | ||||||
Product size | (L X W X H)420mm*403mm*88mm |
